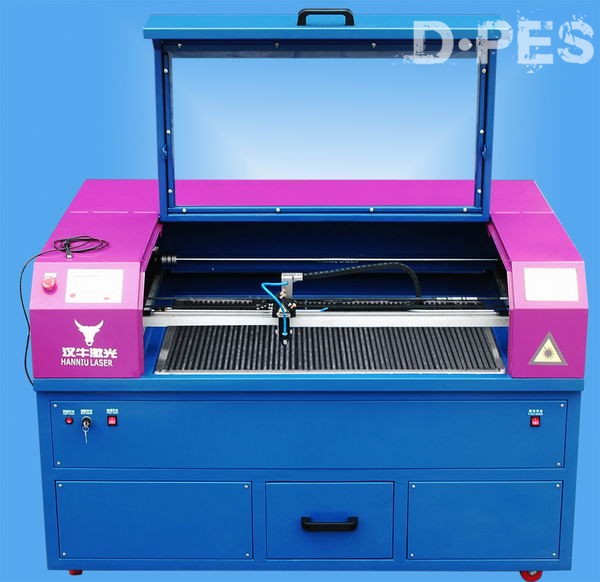

K-9060 laser cutting machine
Specifications:
1) Lathe bed structure ensures the stable operation while carving and cutting at high speed
2) Beam is drawn out of high hardness alloy aluminum material and driven by a large power subdivision server-motor
3) Laser unit served by special radiator and protected without water makes it stable and safe with a longer life span
4) It matches accessories such as rotation platforms, double loser units
5) Operation handle can be chosen
Parameter:
| Model |
laser cutting machine K-9060 |
| Engraving Area |
600×400mm |
| Engraving Speed |
0-64000mm/min |
| Laser power |
60w |
| Natural life of laser |
3000hours |
| Laser wave length |
10.6um |
| Resolution ratio |
0.025mm |
| Minimum shaping character |
Chinese character 2mm/ letter 1mm |
| Resetting positioning accuracy |
±0.01mm |
| Power Supply |
Ac220v±10%,50HZ |
| Gross Power |
<1200w |
| Operating Temperature |
0-45 |
| Operating humidity |
5%-95% |
| Graphic Format Supported |
BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF |
| Driver Type |
Stepper Motor |
| Cooling |
air and water cooling |
| Opearate System |
Win98/Win2000/WinXP |
| Max Cutting thickness |
<40mm( acrylic) |
| Net Weight |
120kg |
| Dimension |
1200×60×1100mm
|
Suitable material:
fabrics, leather, wood, plexiglass, wooden product, plastic,rubber, Tile, crystal, jewel, bomboo products, etc
Applicable Industry
Cloth embroide fabric toy,fabricture,glove,bag,leather,advertising,decoration,electric product,rubber,acrylic product,middle density,board etc non-metal sheet precision cutting &engraving.
samples display:
