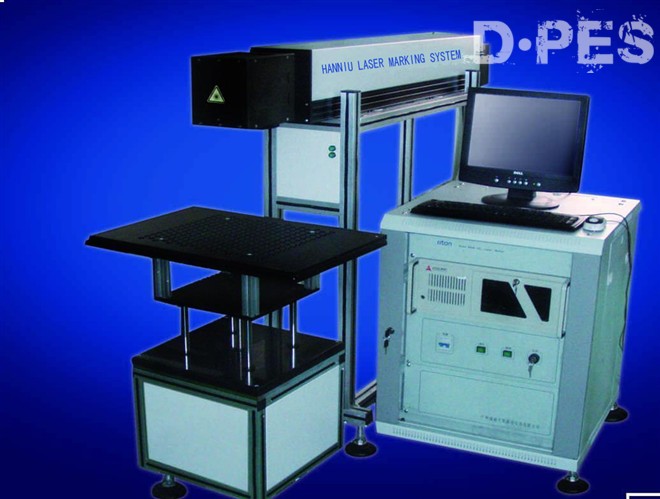

laser marking machine model HN-40
Detailed Product Description
HN-40laser marking machine is able to extend marking area in a single direction. This marking machine equipped with radio-frequency laser imported from USA and high speed scan mirror system can provide strong power as well as the incomparable processing speed, and aschieve the accurate and vivid curving result. This series No-metal laser marking machine will definitely become the faithful partner of manufacturers in garment, fabric and leather, etc.
Technical Index:
| Model |
HN-40 laser marking machine |
| Engraving Area |
110×110mm |
| Engraving Speed |
0-64000mm/min |
| Laser power |
40w |
| Natural life of laser |
3000hours |
| Laser wave length |
10.6um |
| Resolution ratio |
0.025mm |
| Minimum shaping character |
Chinese character 2mm/ letter 1mm |
| Resetting positioning accuracy |
±0.01mm |
| Power Supply |
Ac220v±10%,50HZ |
| Gross Power |
<1800w |
| Operating Temperature |
0-45 |
| Operating humidity |
5%-95% |
| Graphic Format Supported |
BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF |
| Driver Type |
Stepper Motor |
| Cooling |
air and water cooling |
| Opearate System |
Win98/Win2000/WinXP |
| Max Cutting thickness |
<40mm( acrylic) |
| Net Weight |
450kg |
| Dimension |
1600×600×1100mm
|
Functions and Features:
High reliability,long continuous operation time,clear and complete printing be compatible,rich software,able to collect and manufacture vaious lables,non-contact processing ,ensure original precision in the surface of workpiece as possible,suitable to engrave for many materials,remain long time,installing simply and maintenance conveniently.
Applicable Materials:
This Water Cooling Laser Tube Marking Machine can be used in wood,paper,leather,cloth,plexiglass epoxy,Acrylic,unsaturated polyester rein and other non-metal materials.
Applicable Industry:
This Water Cooling Laser Tube Marking Machine widely used in leather,food,beverage,cloth,electronic, meter,communication instruments,package and other industries,can be combined with streamline for online marking.
